The LEGACY SLX is our most popular straight load model. It has been extended 400mm longer than most standard float, as well as 200mm wider internally for those larger horses. This has allowed us to install a large bench unit up front, with a sink and tap, as well as giving you underbench cupboards with plenty of tack space for your convenience. These cupboards can also be accessed from out side the float, with a lockable front entry door. Above this us a cover rack. This model is standard with beds for that stay over and an internal fold down seat.
Legacy SLX Standard Features Include:
The outside story:
-
Full aluminium body kit – stone chip protection all around
-
One piece hot dipped galvanised chassis
-
Galvanised steel frame and 2mm aluminium side panels
-
Axles are made from 50mm solid steel bar
-
Equalising suspension for load sharing on uneven terrain
-
14 x Lubrication points on suspension pins and ramp hinges
-
Extra wide wheel base allows greater stability and smoother travelling
-
Solid mudguards able to be used as mounting block
-
Rear dust door enabling float to be fully locked
-
Alloy wheels for a more stylish finish
-
Heavy duty commercial grade 8 ply 195 x 14 tyres
-
100x 50mm drawbar with aluminium checker plate infill
-
Jockey wheel – heavy duty, largest made here in NZ
-
4 wheel electric brakes fitted with NZ made proportional brake controller - no vehicle modification needed
-
LED lights including 6 side marker lights, high stop and tail light
-
Twin pop up vents
-

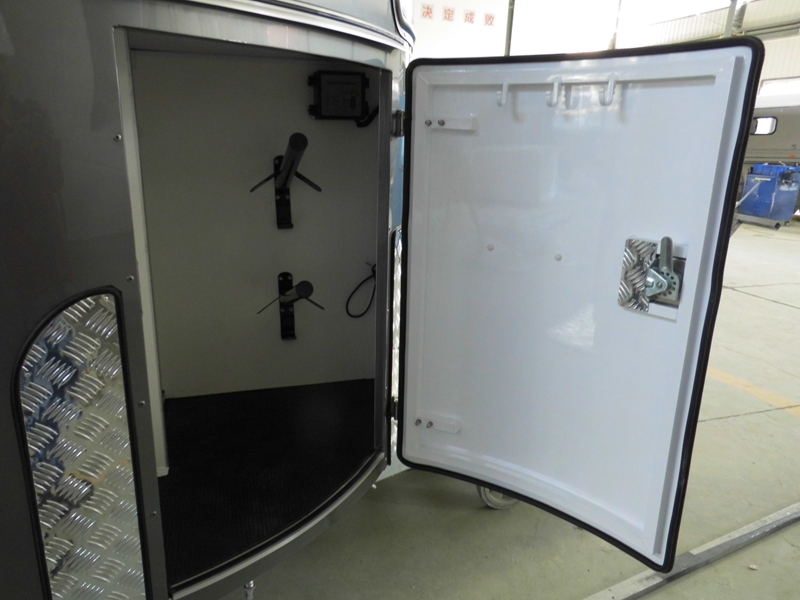

External tack cupbpard with 2 x saddle racks
-
Extra wide loading ramp with rubber matting and cleats
-
Gas struts on ramp for easy lifting
-
4 x Stainless steel latches, horse tie-ups and fittings
-
Sliding side windows with insect mesh
-
Offset lockable pedestrian door with latch to hold back
-
60 litre water tank with inside and outside taps
-
Sureflow 30 psi water pump
-
Internal drains
-

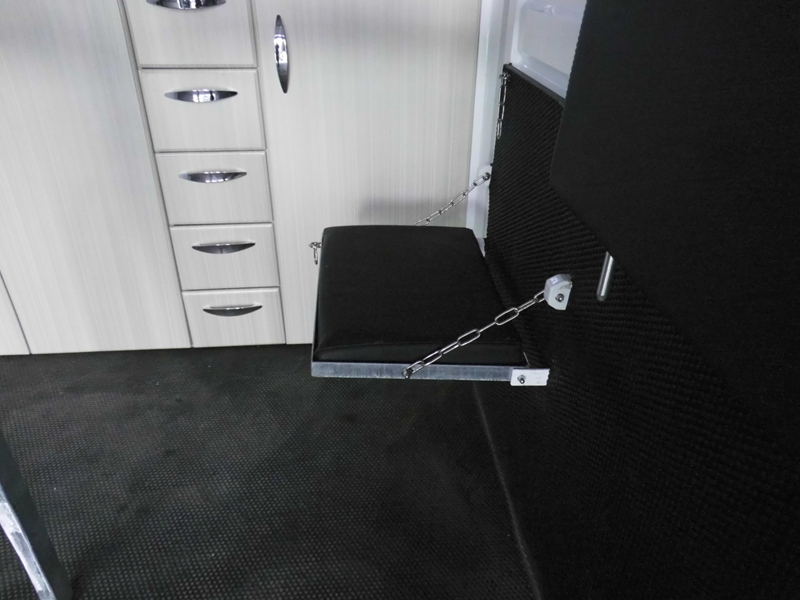

Fold down seat
-
Spring loaded large bum pads
-
Hard wearing glued down sealed rubber flooring ( even in cupboards)
-
Available in any colour choice (PPG paint )
-
Completely removable internal dividers allowing a 3000 x 1700 open floor space
-
Full width bum bar as well as 1/4 bar for setting up as an angle load for one horse
-
Galvanised head guard and stallion guard

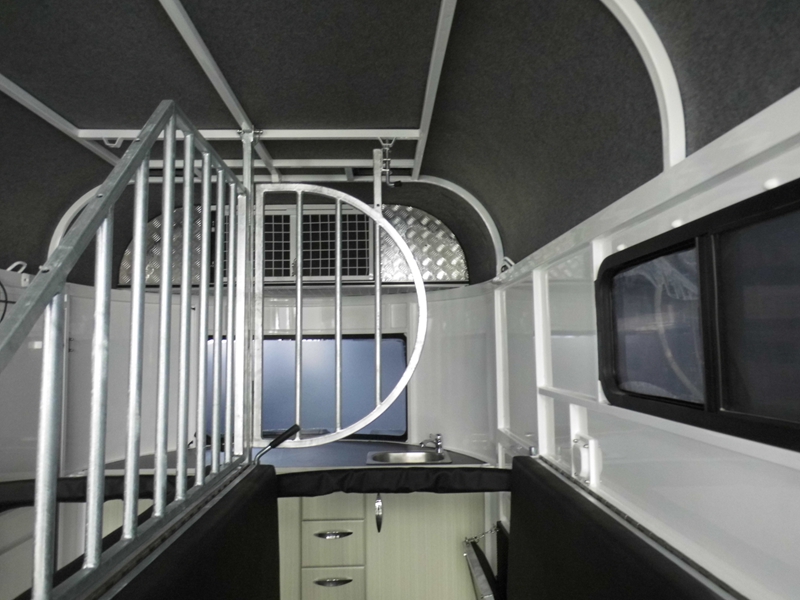

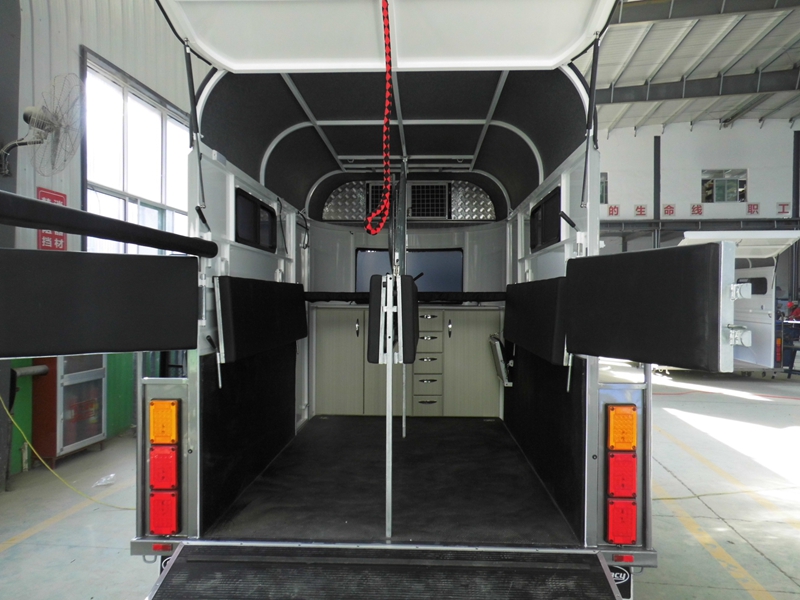

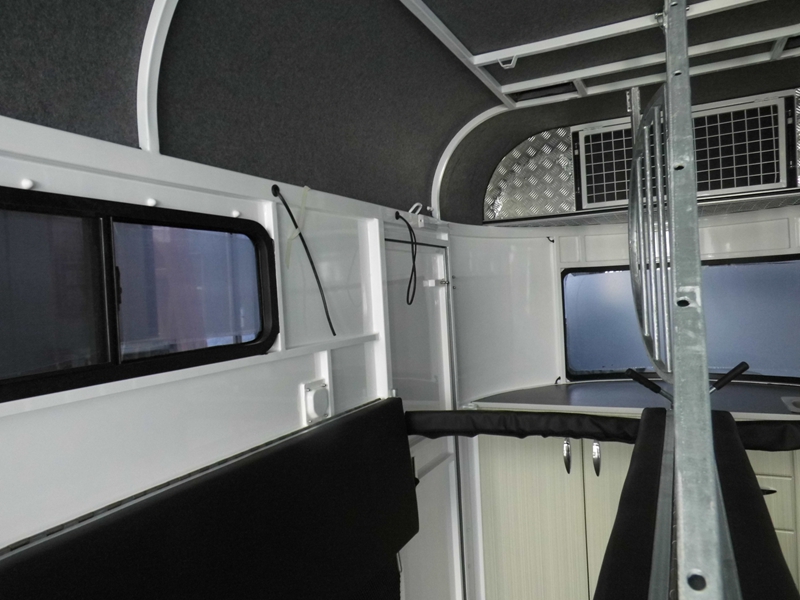

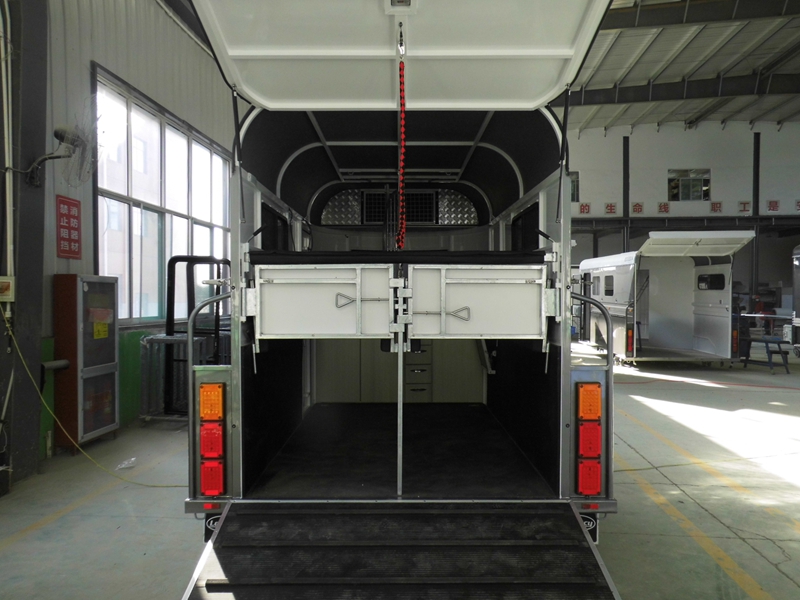

The inside story:
-
Full rubber fit out – floor and walls
-
Holypan Fibreglass Flooring with 10mm sealed rubber overlay (will never rot)
-
Full padding
-
Fold up padded full size bed
-
Removable hot dipped galvanised dividers and head guards
-
Hinged curved chest bars, completely removable and adjustable
-
Completely removable centre bar for carrying hay/furniture
-
Huge padded bum bars – with spring loaded catch
-
Full width bum bar and ¼ bar also supplied
-

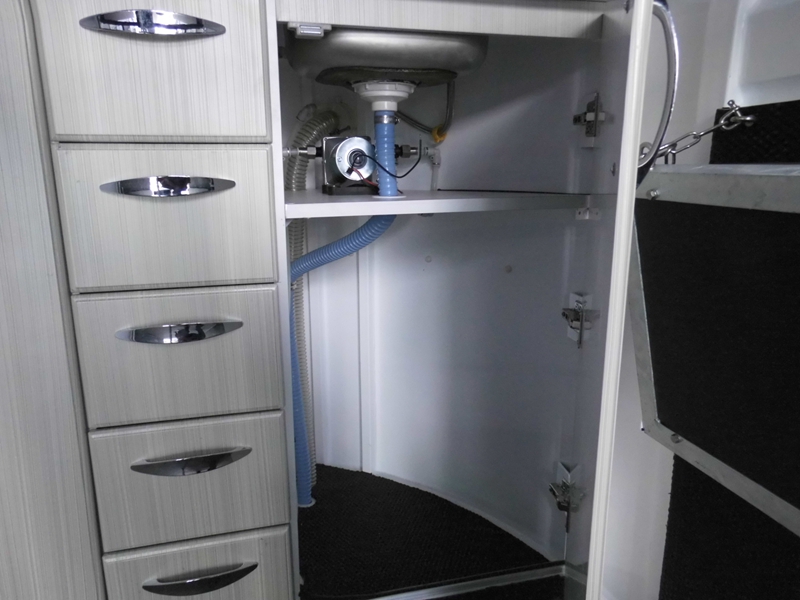

Bench unit with sink and tap
-
Underbench cupboards with shelving
-
Overhead rug rack
-
Sureflow 30psi pump and filter
-
Completely Insulated roof
-
Fold down internal seat
-
3 LED internal lights
Legacy SLX Optional Extras:
Fiamma Awning
Awning Lights
Prestige Power Pack
Hay Storage options
Break away unit
Cameras – internal and reversing

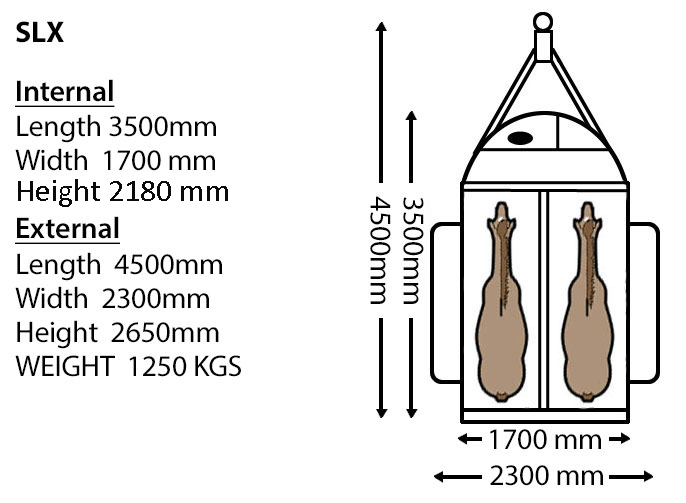

Dimensions:
Prestige Trailers Colour Chart :
