Whether you are wanting a 2, 3 or 4 horse, we can cater for your needs. We also offer a full kitchen fit out, ranging from a basic kitchen unit and sink, to a full home away from home fit out, with gas hobs, shower, fridge and microwave. We also build the horse bays to suit your requirements, even 2800 mm long for those 18 hh hacks.

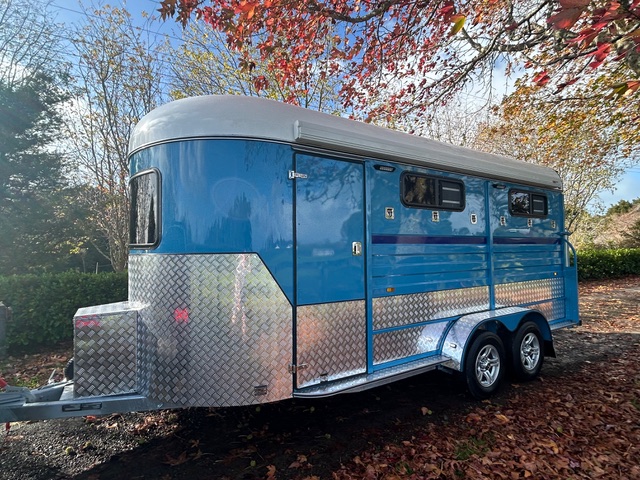

Legacy ALX3 Standard Features Include:
The outside story:
-
Full aluminium body kit – stone chip protection all around
-
One piece hot dipped galvanised chassis
-
Galvanised steel frame and 2mm Aluminium side panels
-
PPG Paint
-
Axles are made from 50mm solid steel bar
-
Equalising suspension for load sharing on uneven terrain
-
14 x lubrication points on suspension pins and ramp hinges
-
Extra wide wheel base allows greater stability and smoother travelling
-
Solid mudguards able to be used as mounting block
-
Rear dust door enabling float to be fully locked
-
Alloy wheels for a more stylish finish
-
Heavy duty commercial grade 195 x 14 8 ply tyres
-
100x 50mm drawbar with aluminium checker plate infill
-
Jockey wheel – heavy duty, largest made in NZ
-
Emergency break-away unit
-
4 wheel electric brakes with supplied brake controller (to be mounted in tow vehicle - wireless available POA)
-
LED lights including 6 side marker lights, high stop and tail light
-
Twin pop up vents
-
External tack cupbpard
-
Extra wide loading ramp with rubber matting and cleats
-
Gas struts on ramp for easy lifting
-
Stainless steel latches, 3 horse tie-ups each side
-
Sliding side windows with insect mesh and grills
-
Offset pedestrian door with latch to hold back
-
60 litre water tank with outside tap
-
Available in any colour choice
The inside story:
-
Full rubber fit out – floor and walls
-
Full padding
-
Fold up padded seat
-
Holypan Fibreglass flooring with 10mm sealed rubber overlay
-
Removable hot dipped galvanised dividers and head guards
-
Completely removable centre bar for carrying hay/furniture
-
High and low horse tie-ups
-
3 saddle swing-out tackbox - can be upgraded to 4 saddle
-
Urine drains
-
Bridle hooks
-
Huge bum pads
-
Bench unit with sink and tap
-
Outside tap
-
Underbench cupboards with shelving
-
Huge fully enclosed side cover rac
-
Sureflow 30psi pump and filter
-
Insulated roof
-
3 LED internal lights
-
Sliding side windows with insect mesh and grills
Legacy ALX3 Optional Extras:
-
Fiamma Awning / Privacy Room
-
Awning Lights
-
Prestige Power Pack (includes cellphone charger, compressor, invertor)
-
Hay Storage options
-
Cameras – internal and reversing
-
Solar Panels
-
Fridge
-
Gas cooker
-
Hot Water Heater
-
Internal shower
-
Draw bar storage unit

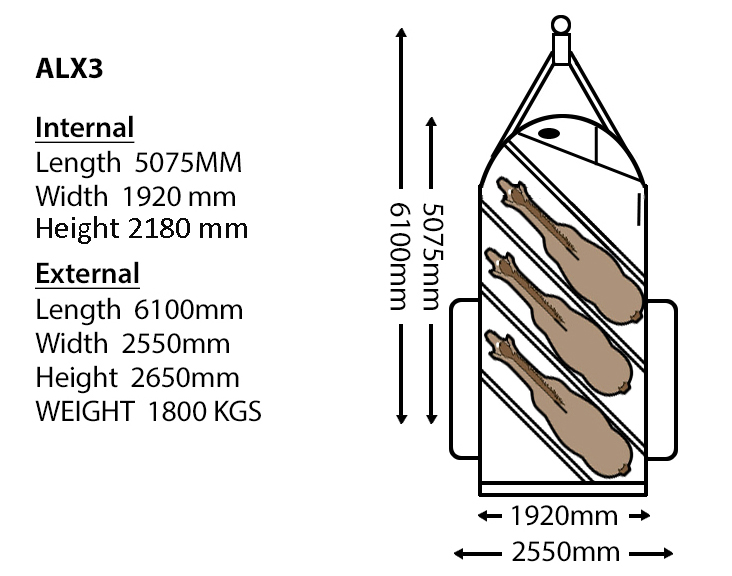

Dimensions:
Prestige Trailers Colour Chart :
